Route this Active High Speed HDMI 2.0 Cable through office plenum spaces for long distance transmission of 4K 60Hz video and high quality audio.
HDMI UHD Over Long Distances
The Active HDMI 2.0 cord is designed for long-distance reliability. Durable gold-plated connectors and 24/28AWG bare copper wire maintain optimal conductivity and low resistance, ensuring consistent performance across different environments. The integrated active chipset boosts the HDMI signal without requiring external power, facilitating 4K 60Hz video and full HDMI 2.0 capabilities. This enables the transmission of HDMI UHD video beyond passive cable lengths.
Full-Featured HDMI 2.0
The Active HDMI UHD Cable supports full HDMI 2.0 specifications:
• Up to 18Gbps bandwidth for 4K 60Hz video and higher refresh rates at lower resolutions (e.g. 1080p/1440p 120Hz)
• High Dynamic Range (HDR10) with 10-bit processing for higher contrast ratio and vibrant, cinematic picture quality
• Audio Return Channel (ARC) for 7.1 and 32-channel audio
• High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display
• Dual Video Streams enable two independent video streams from a single source, allowing for picture-in-picture and other capabilities
• Variable Refresh Rate (VRR) synchronizes the refresh rate of the display with the output frame rate of the content, reducing screen tearing
Plenum-Rated Cabling
This HDMI 2.0 Cable features a Communications Multipurpose Plenum (CMP)-rated cable jacket with low-smoke characteristics. It is ideal for use in the plenum spaces of buildings (e.g., dropped ceilings and in-wall installations). The durable outer jacket is rated to withstand over 1,000 bending cycles at -/+60 degrees. This protects the cable from damage when routing through tight spaces that include multiple bends.

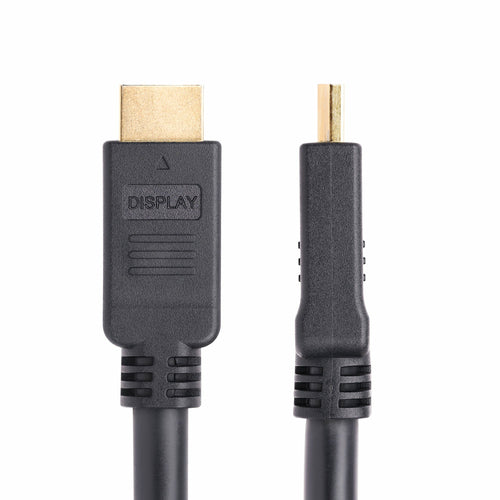

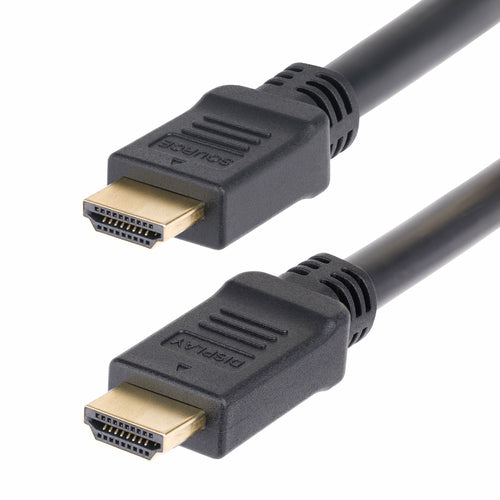

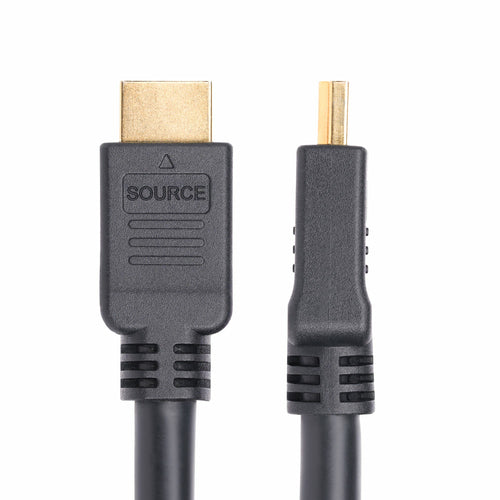

Note : This cable is unidirectional and must be installed in a specific direction. Refer to the embossed SOURCE and DISPLAY markings on the HDMI connectors to ensure that each end corresponds with the correct hardware.
The StarTech.com Advantage
Features | |
---|---|
Cable length | 10 m |
Connector 1 | HDMI Type A (Standard) |
Connector 2 | HDMI Type A (Standard) |
Connector 1 gender | Male |
Connector 2 gender | Male |
Connector 1 form factor | Straight |
Connector 2 form factor | Straight |
Product colour | Black |
HDMI version | 2.0 |
Supported graphics resolutions | 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160 |
Supported video modes | 1080p, 1440p, 2560p |
Audio Return Channel (ARC) | Yes |
HDCP version | 2.2 |
Data transfer rate | 18 Gbit/s |
High Dynamic Range (HDR) supported | Yes |
High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
Supported digital audio channels (uncompressed) | 7.1, 32 |
Unidirectional | Yes |
Maximum refresh rate | 120 Hz |
AWG wire size | 24/28 |
Connector contacts plating | Gold |
Cable material | Copper |
Cable rating | CMP |
Cable type | Round cable |
Cable jacket material | Polyvinyl chloride (PVC) |
Cable shielding | Aluminum mylar foil |
Colour depth | 10 bit |
Quantity per pack | 1 pc(s) |
Logistics data | |
Master (outer) case width | 400 mm |
Master (outer) case length | 300 mm |
Master (outer) case height | 300 mm |
Products per master (outer) case | 10 pc(s) |
Operational conditions | |
Operating temperature (T-T) | -20 - 70 °C |
Storage temperature (T-T) | 0 - 50 °C |
Operating relative humidity (H-H) | 0 - 95% |
Technical details | |
Sustainability compliance | Yes |
Compliance certificates | CE, RoHS |
Weight & dimensions | |
Cable diameter | 9 mm |
Package width | 250 mm |
Package depth | 250 mm |
Package height | 35 mm |
Package weight | 1 kg |
10 m |
HDMI Type A (Standard) Straight Male |
HDMI Type A (Standard) Straight Male |
HDMI version: 2.0 |
120 Hz 18 Gbit/s |
High Dynamic Range 10 (HDR10) |
Audio Return Channel (ARC) |
Black |
